Vision¶

Brief¶

The Sentry2 vision sensor integrates a variety of offline vision algorithms to recognize objects without network, and the on-board ESP8285-WiFi chip can realize the cloud-based image recognition function.

Introduction¶

Vision List¶

Vision ID	Name	Brief
1	Color	Return the R(red),G(green),B(blue) value and its label of each region. Up to 25 regions
2	Blob	Detect a specified color block. It supports black, white, red, green, blue and yellow color blocks setection at the same time
3	Apriltag	Support 16H5, 25H9, 36H11 Apriltag family. Up to 25 tags
4	Line	Find lines and return its endpoints and degrees, support 1-5 lines
5	Learning	Training objects and categorize them. Up to 25 model data
6	Card	Identify special card patterns, including 10 traffic cards, 9 shape cards, and 10 number cards
7	Face	Face detection and recognition, support mask detection, can store 25 model data
8	20Class	Classify 20 common objects, such as cat, car, human etc
9	QrCode	Recognition a simple QR code

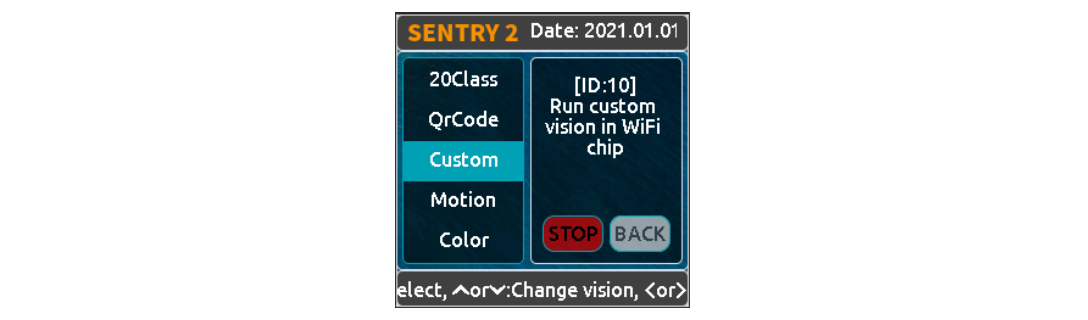

10	Custom	Running custom algorithms which is running in the ESP8285-WiFi chip on board

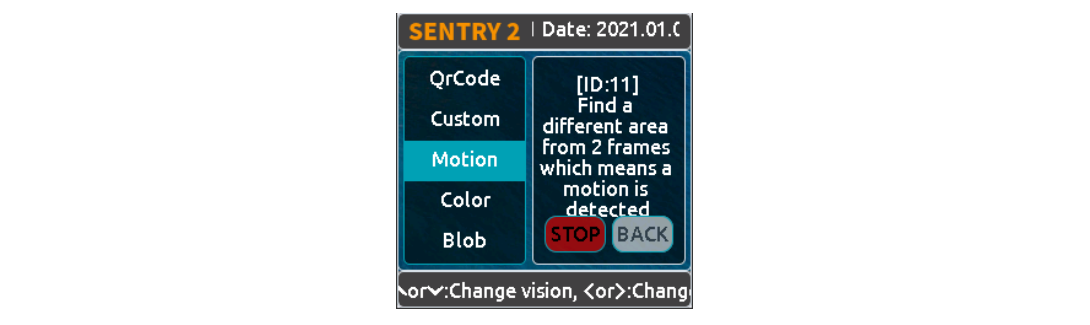

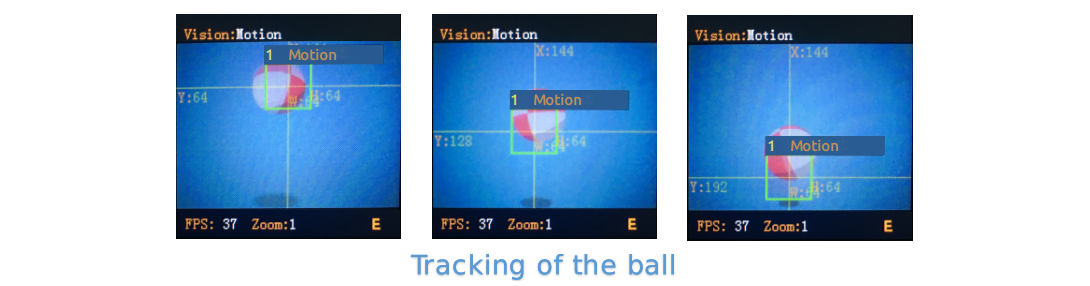

11	Motion	Determine if there are moving areas in the image

Note: Multiple visions without asterisks can be enabled at the same time. But the visions with asterisks can not running with other asterisks vision. When multiple algorithms are enabled, the speed will be slowed down

Detailed Introduction¶

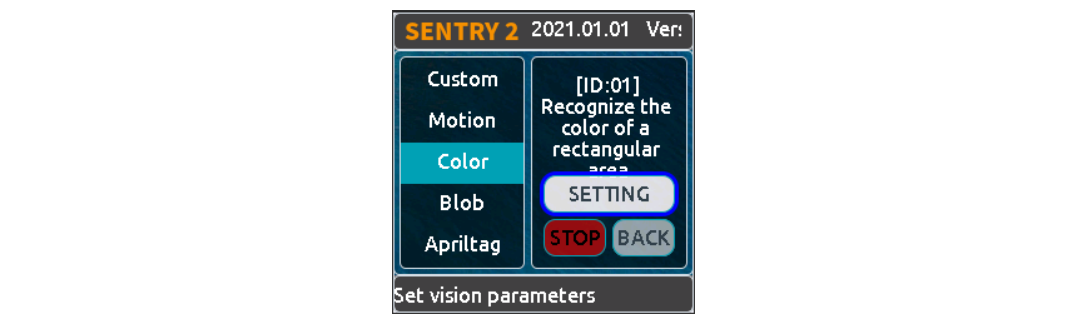

ID:1 Color¶

Brief

User can set one or up to 25 regions for color recognition and return the R(red),G(green),B(blue) value and its label of each region. The coordinate and size of each region can be configured.

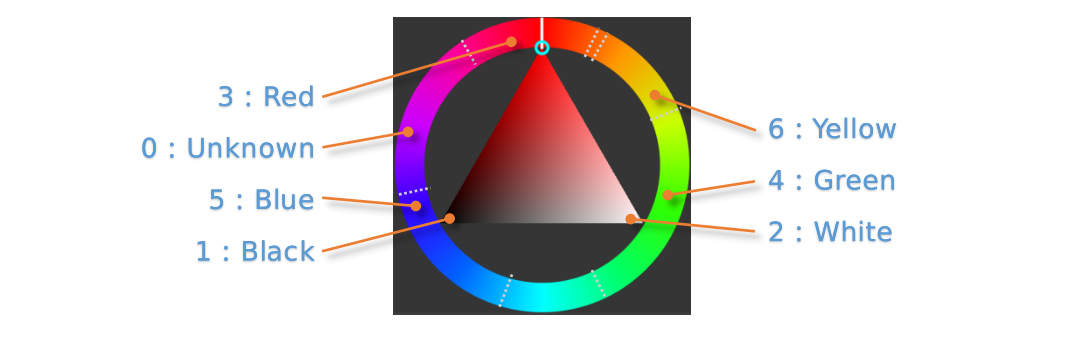

Color Label
A color label is a number use to represent a color:

Label

Name

Label

Name

1

Black

2

White

3

Red

4

Green

5

Blue

6

Yellow

0

Unknown
Parameters

User can set regions for recognition:

Param

Brief

1

X-coordinate of the region center

2

Y-coordinate of the region center

3

Width of the region

4

Height of the region

5

None

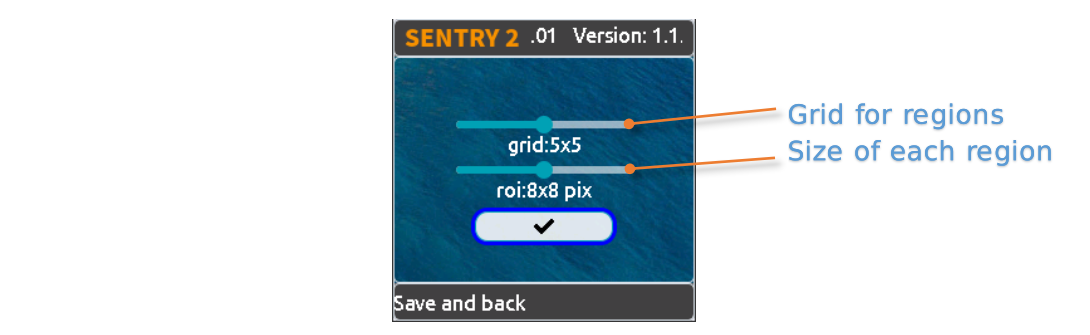

We provide several preset parameters in the UI setting page:

Grid(X x Y): 1x1、2x2、3x3、4x4、5x5、1x10、2x10、6x1、6x2

Size(W x H): 2x2、4x4、8x8、16x16、32x32

NOTE：To represent a square in the percentage coordinate system, the width and height are not equal, but conform to the 3:4 relationship. For example, if the width of a square is 12%, then its height h should be 12/3×4=16%. In the absolute coordinate system, the preset recognition area size are : 1x1, 2x3, 3x4, 6x8, 9x12
Results

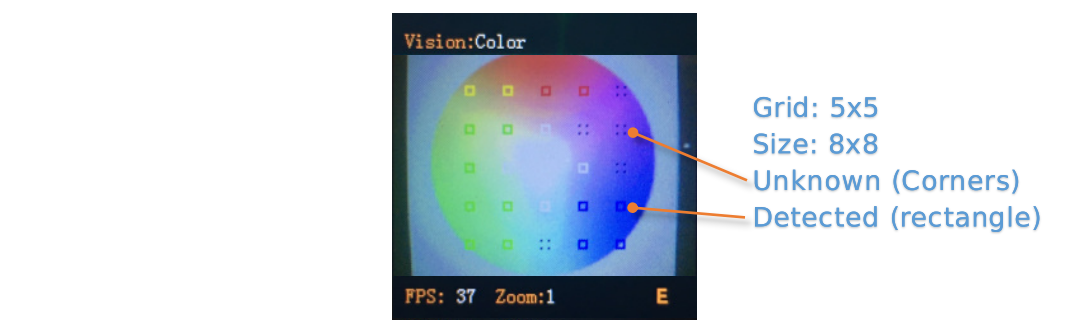

There will be a rectangular box on the screen that identifies the color, and a 4-corner box identifies the unknown color

Result

Brief

1

R, red channel value, range 0～255

2

G, green channel value, range 0～255

3

B, blue channel value, range 0～255

4

None

5

Color label

Label	Name	Label	Name
1	Black	2	White
3	Red	4	Green
5	Blue	6	Yellow
0	Unknown

Param	Brief
1	X-coordinate of the region center
2	Y-coordinate of the region center
3	Width of the region
4	Height of the region
5	None

Result	Brief
1	R, red channel value, range 0～255
2	G, green channel value, range 0～255
3	B, blue channel value, range 0～255
4	None
5	Color label

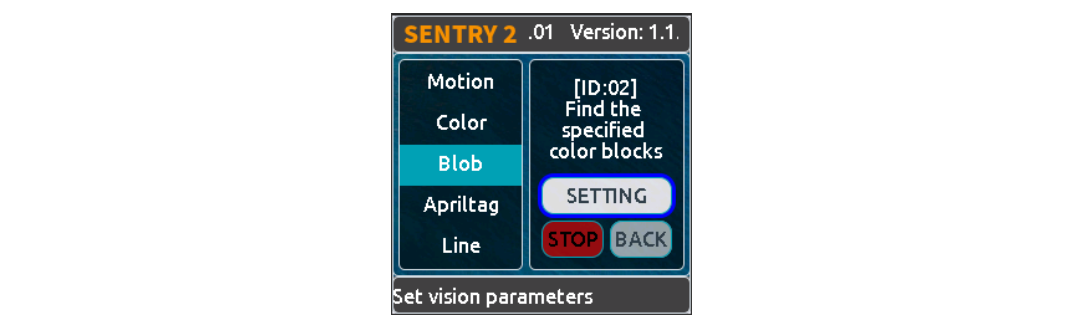

ID:2 Blob¶

Brief

Find a certain color block from an image and return its coordinate and size. It support mulit-color and multi-result detection. The color label has the same definition of Color vision
Parameters

User need to decide which color to be detected firstly. The width and height of the minimum color piece can be configured to reduce the false results:

Param

Brief

1

None

2

None

3

Minimum width

4

Minimum height

5

The label of Color to be detected

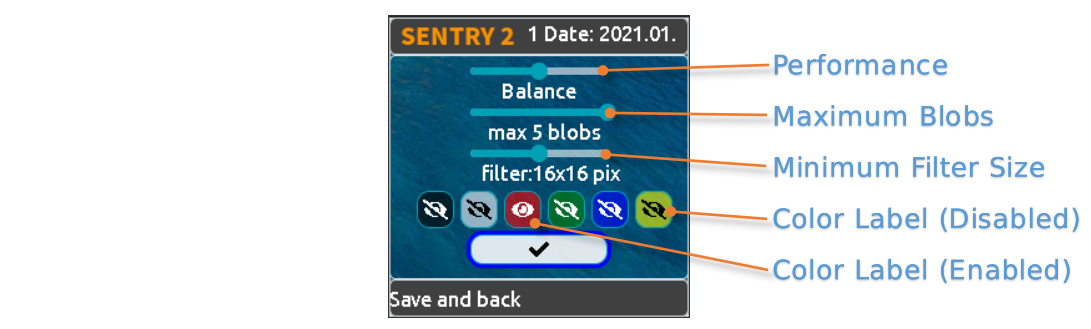

We provide several preset parameters in the UI setting page:

Algorithm Performance Level:
To select the performance of the vision according to different application requirements: “Sensitive”, “Balance”, and “Accurate”.

Maximum Number of Blocks:
Support 1~5 blocks for each color

Minimum Size of Block:
Absolute Coordinate System: 2x2, 4x4, 8x8, 16x16, 32x32, 64x64, 128x128 pixel

Percentage Coordinate System:1x1, 2x3, 3x4, 6x8, 9x12, 21x28, 42x56 %

Color to be Detected：
An open eye icon is displayed if the color label is actived

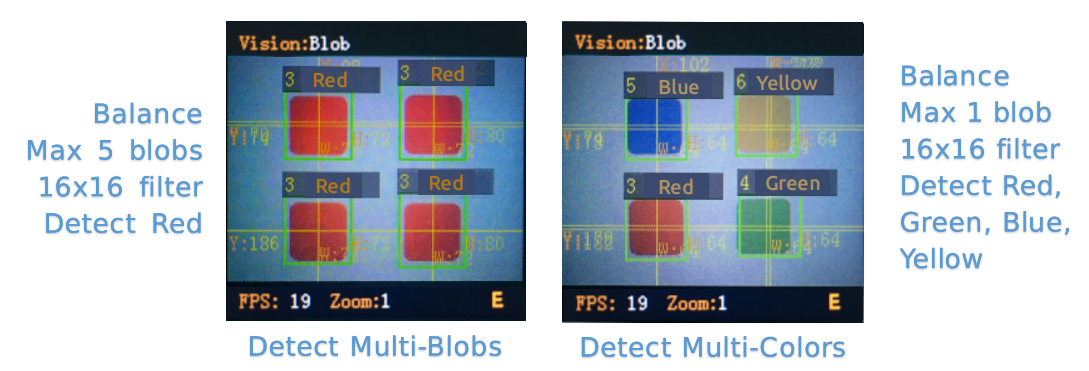

Results

Get the results :

Result

Brief

1

X-coordinate of the block center

2

Y-coordinate of the block center

3

Width of the block

4

Height of the block

5

Color label

Param	Brief
1	None
2	None
3	Minimum width
4	Minimum height
5	The label of Color to be detected

Result	Brief
1	X-coordinate of the block center
2	Y-coordinate of the block center
3	Width of the block
4	Height of the block
5	Color label

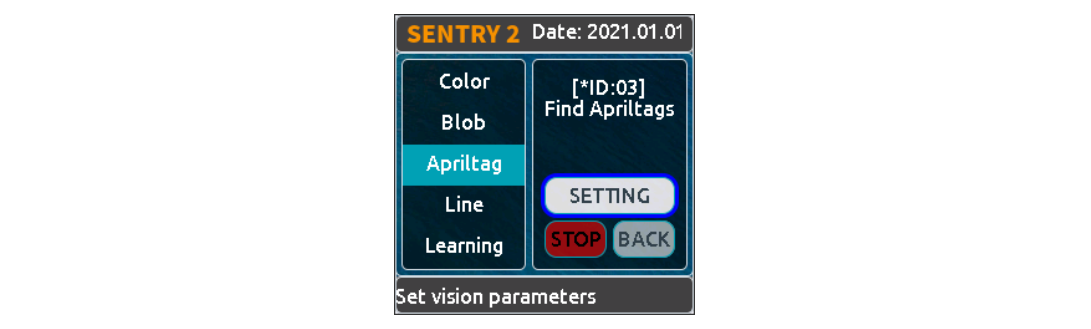

ID:3 Apriltag¶

Brief

Find apriltags from an image, support 16H5，25H9，36H11 encoding family and up to 25 results. You need to decide which encoding family to use before this vision enabled, and only one family can be process

NOTE: This vision cannot run at the same time as other vision marked with asterisks

Label

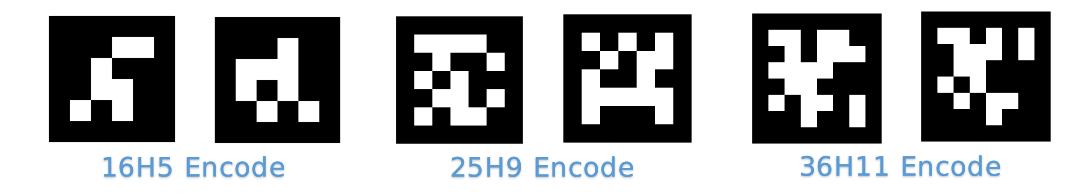

Apriltag is a set of defined black and white squares. Different codes use different numbers of squares. Each pattern has a predefined label.

Apriltag image download <https://github.com/AprilRobotics/apriltag-imgs/tree/master>
Parameters

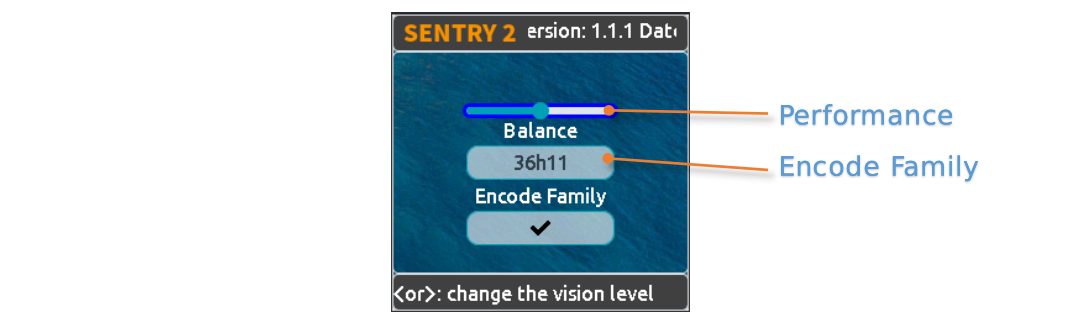

We provide several preset parameters in the UI setting page:

Algorithm Performance Level:
To select the performance of the vision according to different application requirements: “Sensitive”, “Balance”, and “Accurate”.

Encoding Family:
Support “16H5”，“25H9”，“36H11”

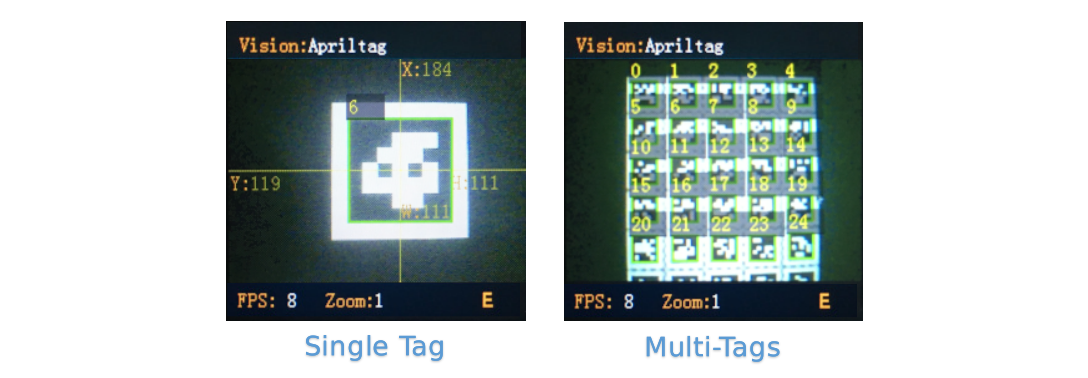

Results

Get the results :

Result

Brief

1

X-coordinate of the tag center

2

Y-coordinate of the tag center

3

Width of the tag

4

Height of the tag

5

Label

Result	Brief
1	X-coordinate of the tag center
2	Y-coordinate of the tag center
3	Width of the tag
4	Height of the tag
5	Label

ID:4 Line¶

Brief

Find one or up to 5 lines from an image and return its 2 endpoints coordinate and degrees. If it is a curve, an approximate line segment is returned
Parameters

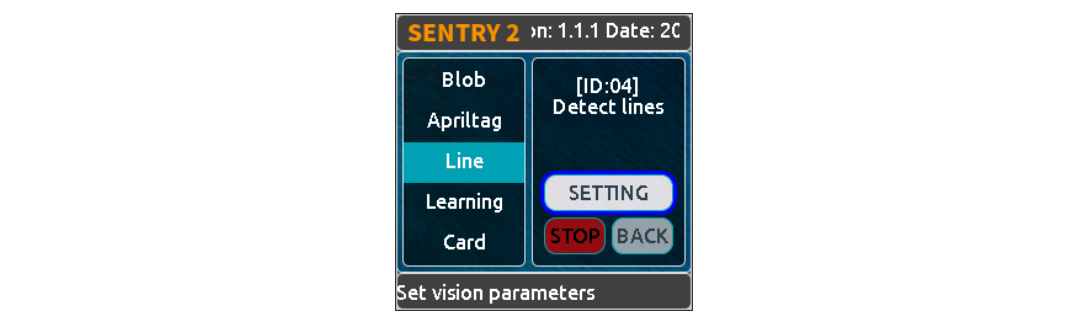

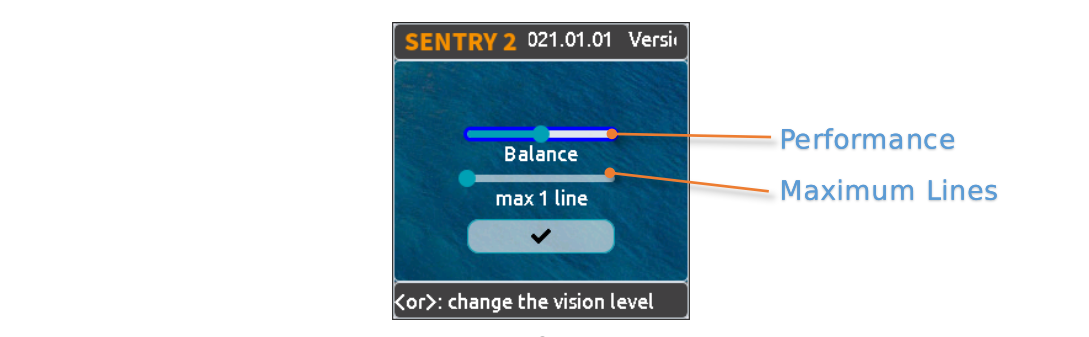

Several parameters can be set in UI setting page:

Algorithm Performance Level:
To select the performance of the vision according to different application requirements: “Sensitive”, “Balance”, and “Accurate”.

Maximum Lines Number:
Range from 1 to 5

Results

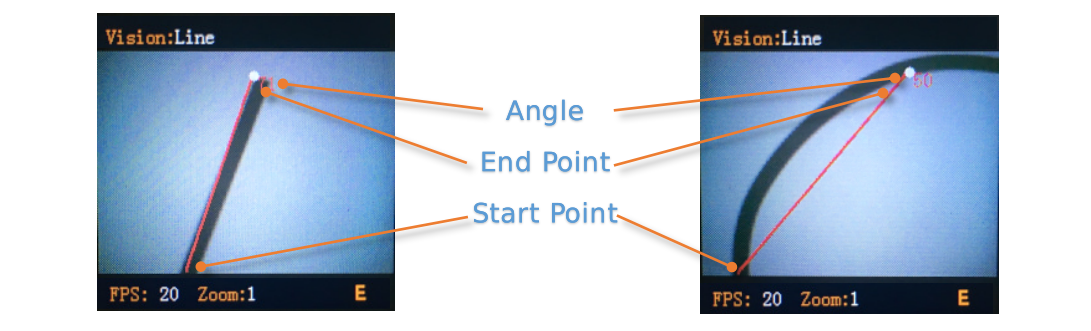

NOTE: The horizontal to the right is 0 degrees, the value is increased by counterclockwise. Upward is 90 degrees, and the horizontal to the left is 180 degrees.

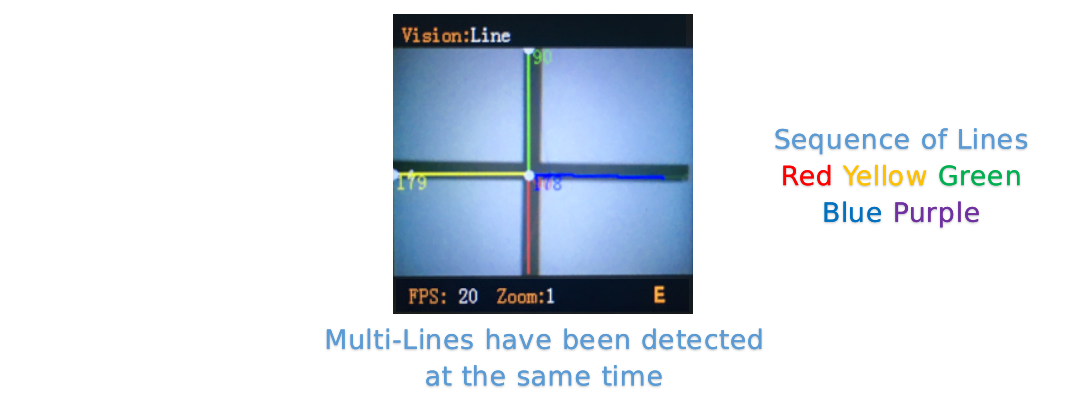

We use 5 different colors - red, yellow, green, blue, and purple - to distinguish the multi-lines

Result

Brief

1

X-coordinate of the end point of the line (upper)

2

Y-coordinate of the end point of the line (upper)

3

X-coordinate of the start point of the line (lower)

4

Y-coordinate of the start point of the line (lower)

5

Degree of the line

Result	Brief
1	X-coordinate of the end point of the line (upper)
2	Y-coordinate of the end point of the line (upper)
3	X-coordinate of the start point of the line (lower)
4	Y-coordinate of the start point of the line (lower)
5	Degree of the line

ID:5 Learning¶

Brief

Objects can be trained and recognized by this vision, up to 25 model data can be saved
Parameters

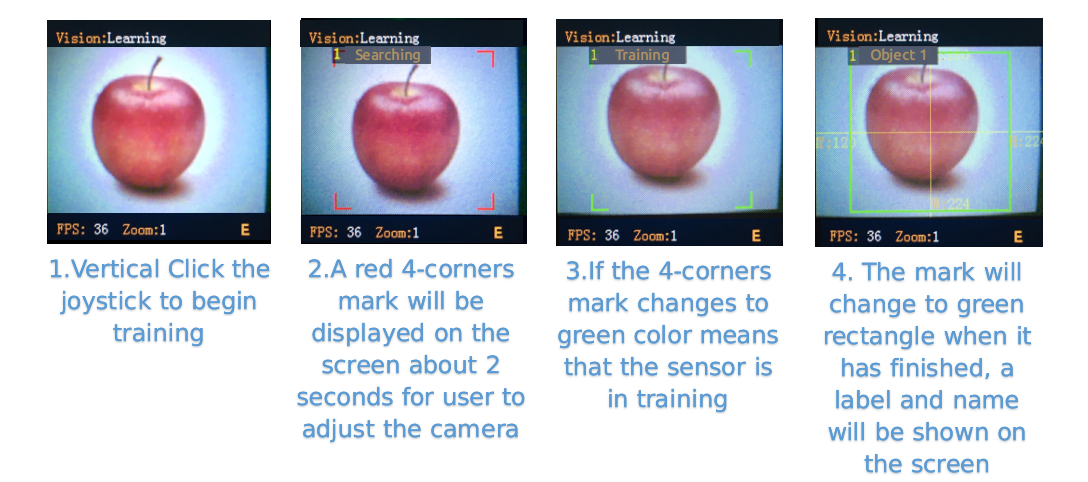

Training New Object:
New object can be trained in the running page：

A label will be automatically assigned to the new object. The principle is: select the smallest number from the available ID

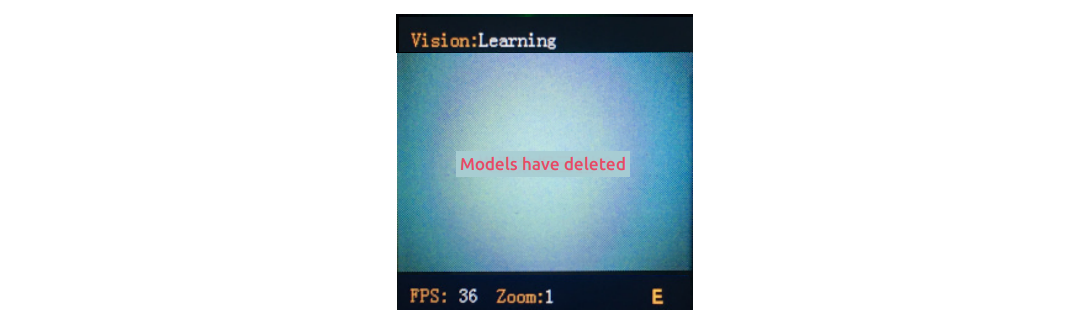

Delete All Objects:
Vertically long press the joystick more than 2 seconds in the running page.

Param

Brief

1

None

2

None

3

None

4

None

5

Write 0 to delete this object, or write 100 to trained

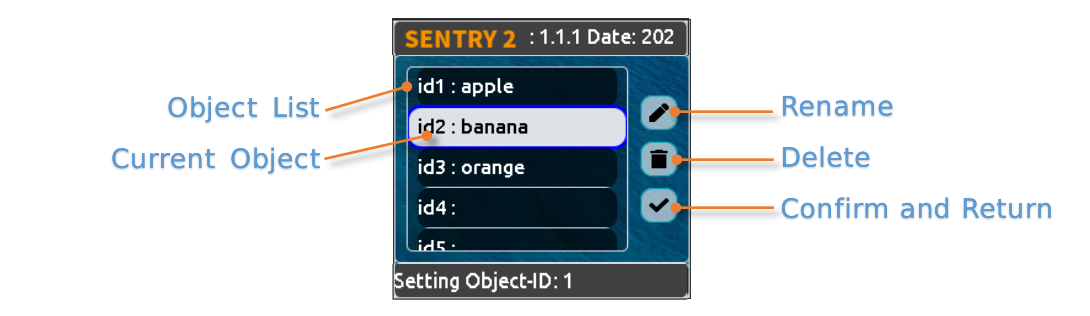

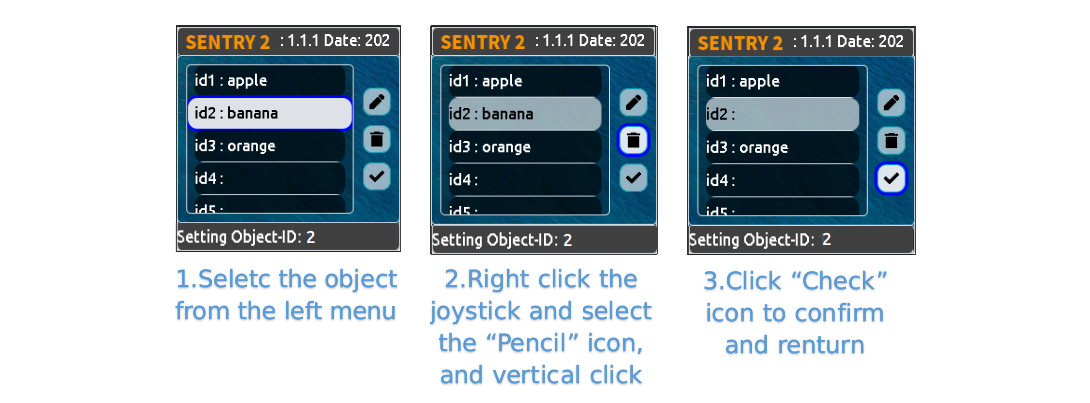

You can rename or delete the trained model in the UI setting page

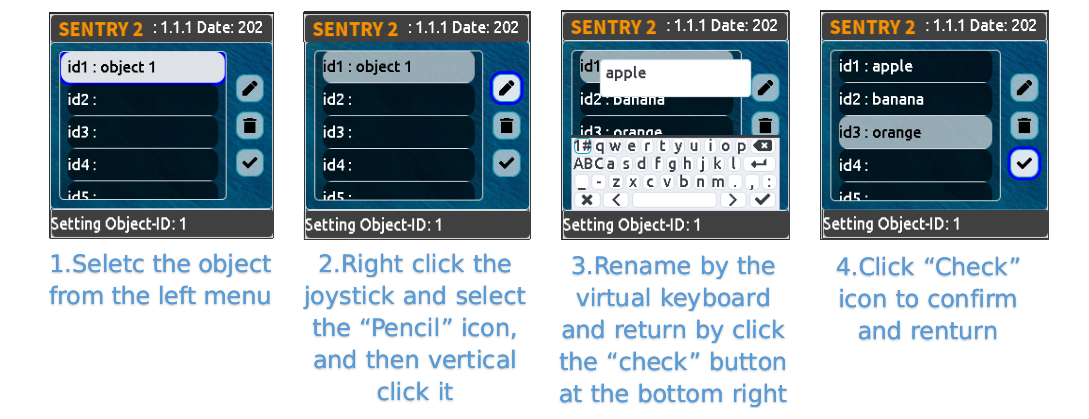

Rename:

NOTE：No more than 32 characters

Delete:
Results

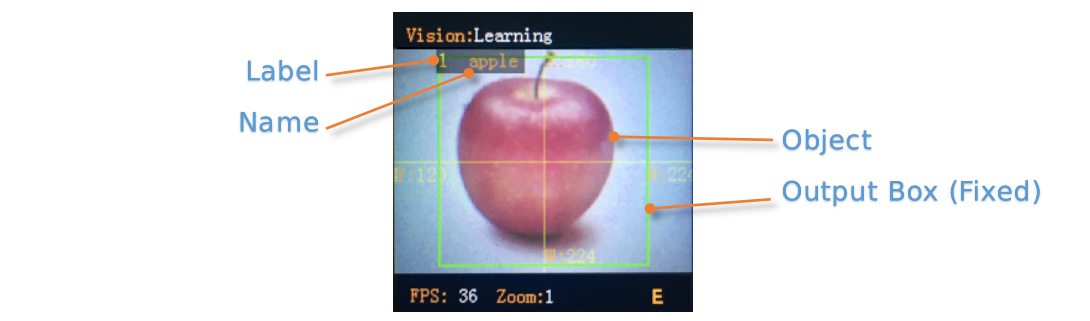

The vision can only judge the existence of the trained object, but not its coordinates and size, so the recognition box is a fixed output value

Result

Brief

1

Fixed, 160

2

Fixed, 120

3

Fixed, 224

4

Fixed, 224

5

Label

Param	Brief
1	None
2	None
3	None
4	None
5	Write 0 to delete this object, or write 100 to trained

Result	Brief
1	Fixed, 160
2	Fixed, 120
3	Fixed, 224
4	Fixed, 224
5	Label

ID:6 Card¶

Brief

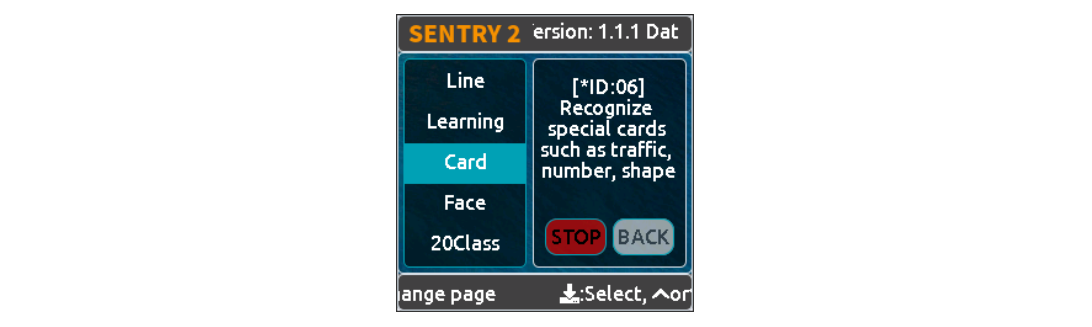

recognize a specified card in the image and return its coordinates, size, label and other information. It includes traffic cards, shape cards and numbers cards. The labels are shown in the following table

Traffic

Label

Name

Label

Name

1

Forward

2

Left

3

Right

4

Turn Around

5

Park

6

Green

7

Red

8

Speed 40

9

Speed 60

10

Speed 80

Shape

Label

Name

Label

Name

11

Check

12

Cross

13

Circle

14

Square

15

Triangle

16

Plus

17

Minus

18

Divide

19

Equal

Number

Label

Name

Label

Name

20

Num 0

21

Num 1

22

Num 2

23

Num 3

24

Num 4

25

Num 5

26

Num 6

27

Num 7

28

Num 8

29

Num 9
Parameters

None
Results

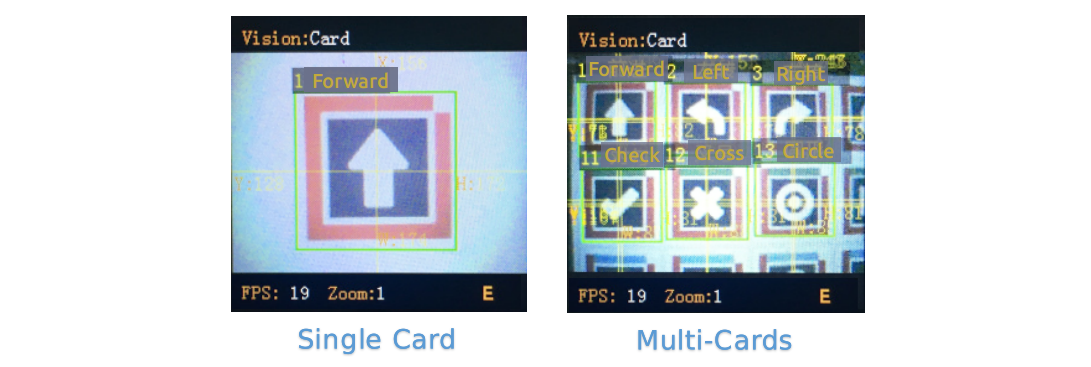

This vision can recognize multiple cards at same time, and the rotation of cards within 30 degrees can still be recognized but don’t rotate the angle too much.

Result

Brief

1

X-coordinate of the card center

2

Y-coordinate of the card center

3

Width of the card

4

Height of the card

5

Label of the card

Label	Name	Label	Name
1	Forward	2	Left
3	Right	4	Turn Around
5	Park	6	Green
7	Red	8	Speed 40
9	Speed 60	10	Speed 80

Label	Name	Label	Name
11	Check	12	Cross
13	Circle	14	Square
15	Triangle	16	Plus
17	Minus	18	Divide
19	Equal

Label	Name	Label	Name
20	Num 0	21	Num 1
22	Num 2	23	Num 3
24	Num 4	25	Num 5
26	Num 6	27	Num 7
28	Num 8	29	Num 9

Result	Brief
1	X-coordinate of the card center
2	Y-coordinate of the card center
3	Width of the card
4	Height of the card
5	Label of the card

ID:7 Face¶

Brief

Faces can be trained and recognized by this vision, up to 25 model data can be saved, its also support mask detection
Parameters

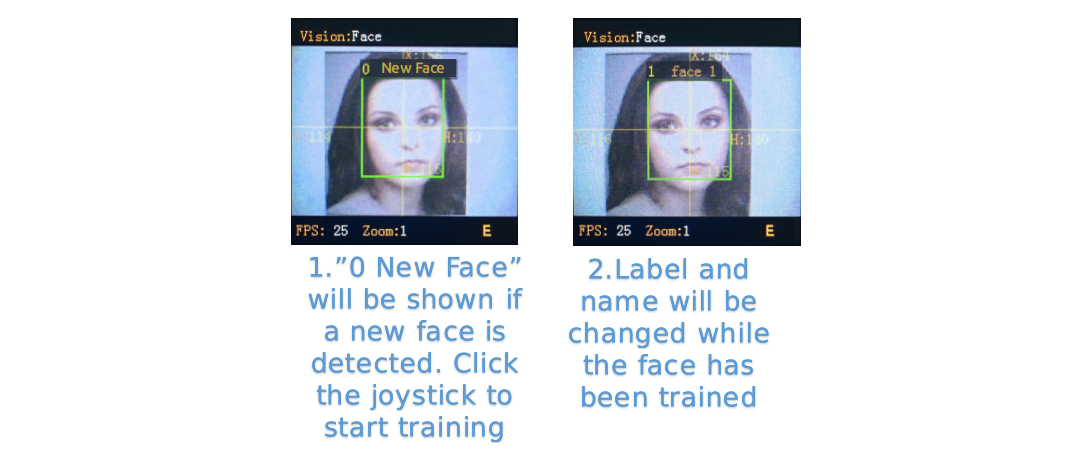

Training New Face:
New object can be trained in the running page：

A label will be automatically assigned to the new face.
The principle is: select the smallest number from the available ID

Delete All Faces:
Vertically long press the joystick more than 2 seconds in the running page.

Param

Brief

1

None

2

None

3

None

4

None

5

Write 0 to delete this object, or write 100 to trained

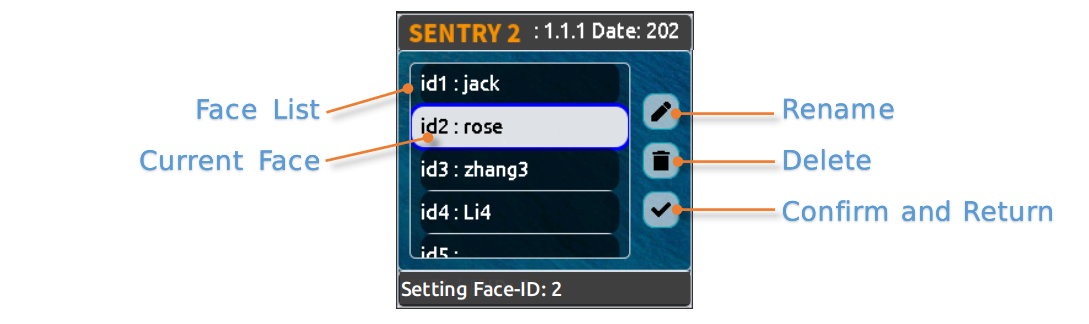

You can rename or delete the trained model in the UI setting page, refer to Learning
Results

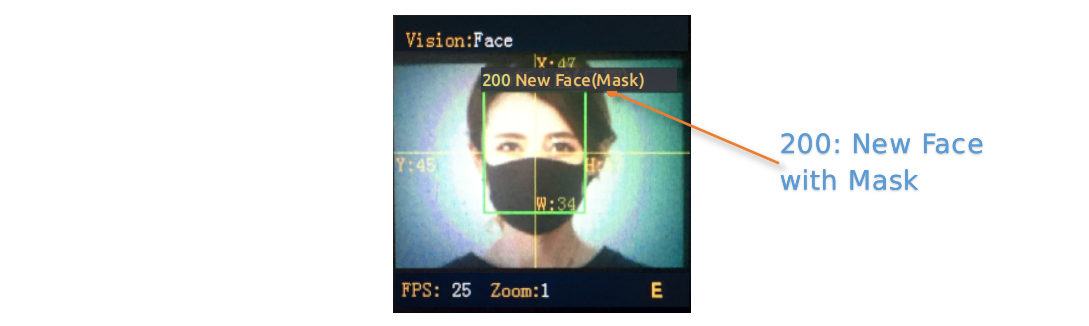

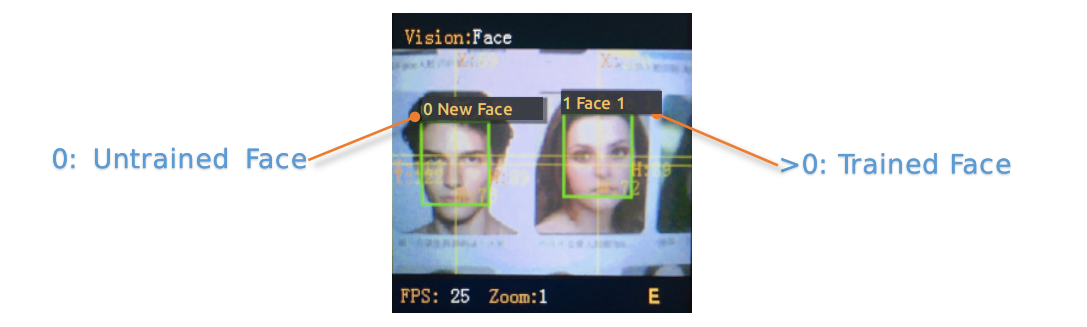

This vision support face detection (new face) and face recognition (trained face) running at the same time. New face will be assigned label 0. Specially, if a new face wearing a mask is detected, “New face (mask)” will be displayed, and the label is fixed at 200

Result

Brief

1

X-coordinate of the face center

2

Y-coordinate of the face center

3

Width of the face

4

Height of the face

5

Label, 0:new face, 200:new face with mask

Param	Brief
1	None
2	None
3	None
4	None
5	Write 0 to delete this object, or write 100 to trained

Result	Brief
1	X-coordinate of the face center
2	Y-coordinate of the face center
3	Width of the face
4	Height of the face
5	Label, 0:new face, 200:new face with mask

ID:8 20Class¶

Brief

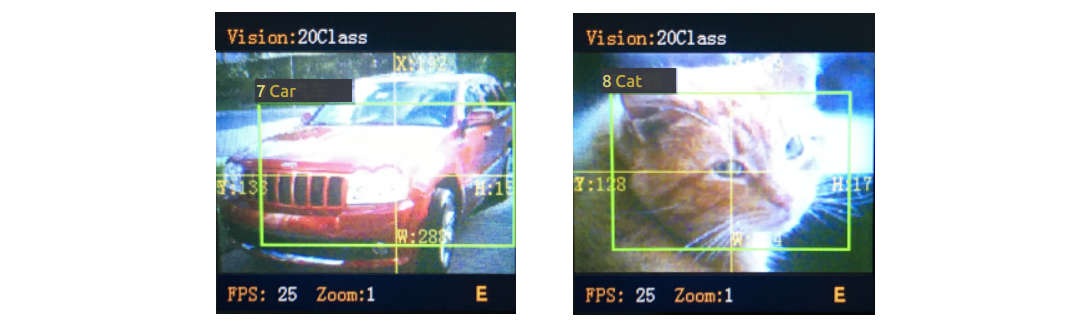

Identify 20 common types of objects and return their coordinate, size and labels, as shown in the table below.

Label

Label

Name

Label

Name

1

Airplane

2

Bicycle

3

Bird

4

Boat

5

Bottle

6

Bus

7

Car

8

Cat

9

Chair

10

Cow

11

DiningTable

12

Dog

13

Horse

14

Motorbike

15

Person

16

PottedPlant

17

Sheep

18

Sofa

19

Train

20

Tvmonitor

Parameters

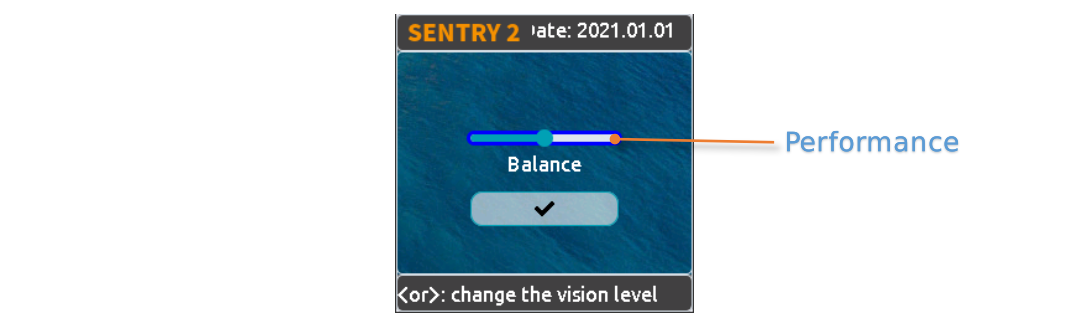

Algorithm Performance Level:
To select the performance of the vision according to different application requirements: “Sensitive”, “Balance”, and “Accurate”.
Results

Result

Brief

1

X-coordinate of the object center

2

Y-coordinate of the object center

3

Width of the object

4

Height of the object

5

Label

Label	Name	Label	Name
1	Airplane	2	Bicycle
3	Bird	4	Boat
5	Bottle	6	Bus
7	Car	8	Cat
9	Chair	10	Cow
11	DiningTable	12	Dog
13	Horse	14	Motorbike
15	Person	16	PottedPlant
17	Sheep	18	Sofa
19	Train	20	Tvmonitor

Result	Brief
1	X-coordinate of the object center
2	Y-coordinate of the object center
3	Width of the object
4	Height of the object
5	Label

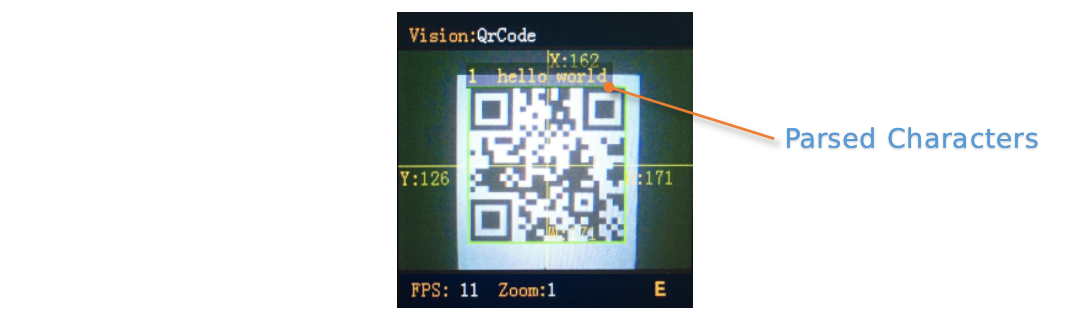

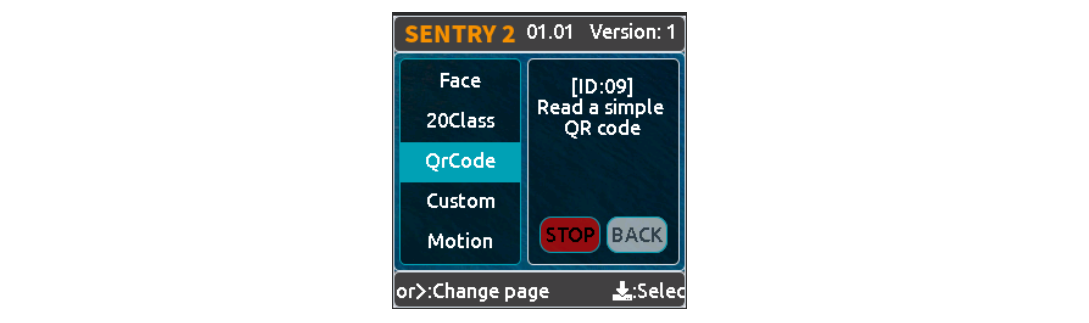

ID:9 QrCode¶
